• 4-Wheel Antilock Brake Sys
• Fordpass Connect 5Gwi-Fi Hotspot Telematics Modem
• Hill Start Assist
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear

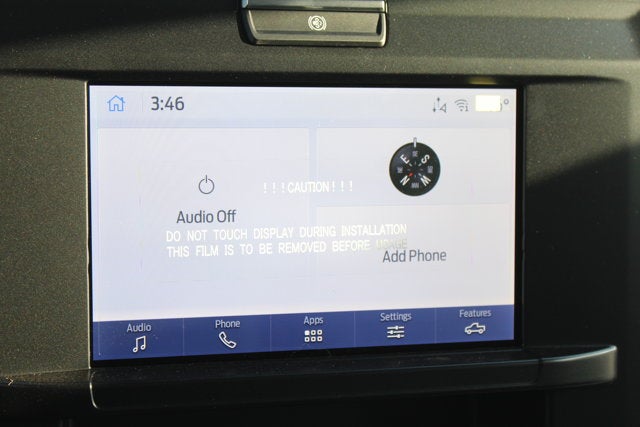

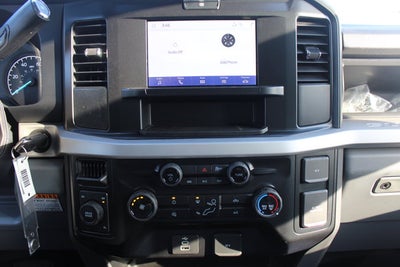

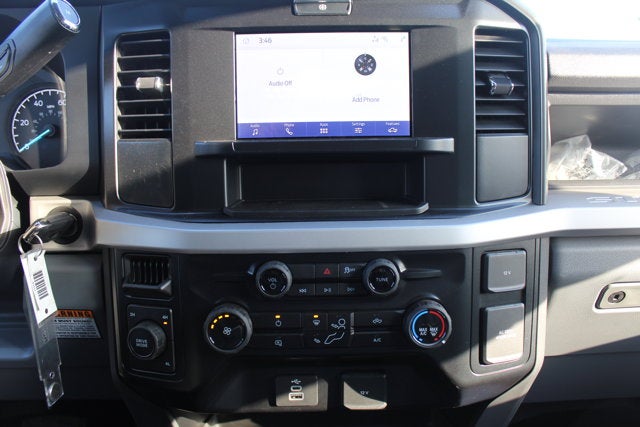

• Sync4 W/8" Screen

• 4.2" Productivity Screen

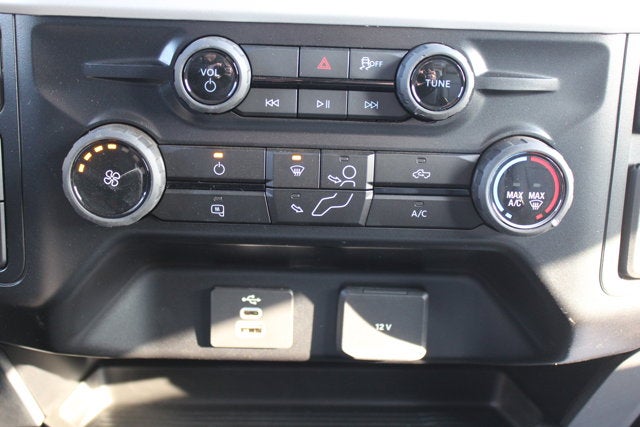

• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows

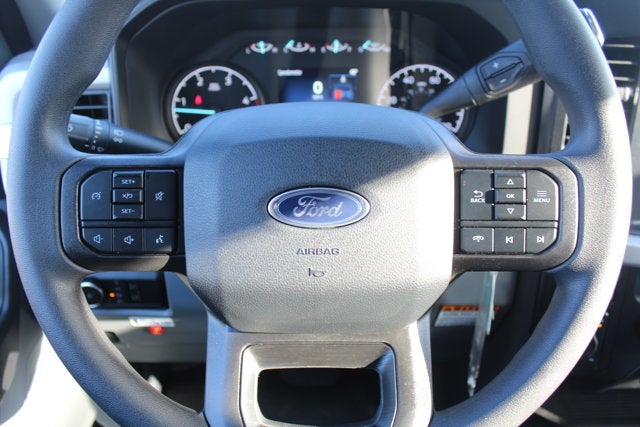

• Steering:Tilt/Telescope, Cruise & Audio Controls

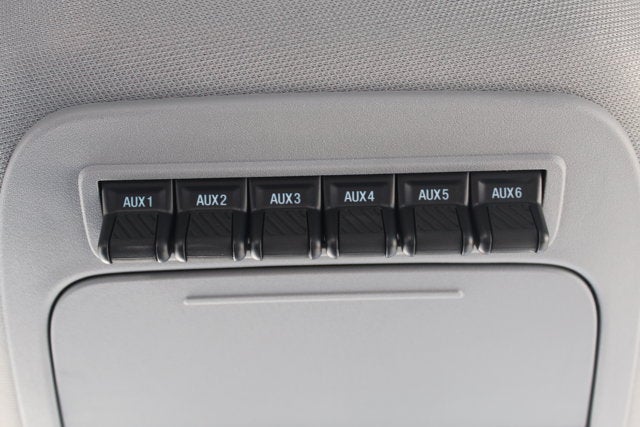

• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys

Extra Heavy-Duty Front End Suspension – 7500 lbs

XL Chrome Package

Power Equipment Group

680A

Snow Plow Prep Package

• Z1 A S 680A 572 99T 44G TGT X4L ZZ1 153 18B 41H 41P 425 43C 473 60X 61J 65Z 67B 86M 872 96V ZZ2 ZZ3 A1
• ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20 -inc: Operator Commanded Regeneration (OCR) Diesel Exhaust Fluid (DEF) tank and manual push-button engine-exhaust braking Limited Slip w/4.30 Axle Ratio 250 Amp Alternator Dual 68 AH/65 AGM Battery
• Oxford White
• AUTOMATED EMERGENCY BRAKING (AEB) REMOVAL -inc: Removes Pre-Collision Assist w/Automated Emergency Barking (AEB) and forward collision warning auto high beams post impact braking and audible lane departure warning
• SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see order guide supplemental reference for springs/FGAWR of specific vehicle configurations) Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: Also allows for the attachment of a winch Note 3: Highly recommended to add (86M) dual battery on 7.3L gas engine Adding (67B) 410 amp dual alternators for diesel engine is highly recommended for max power output

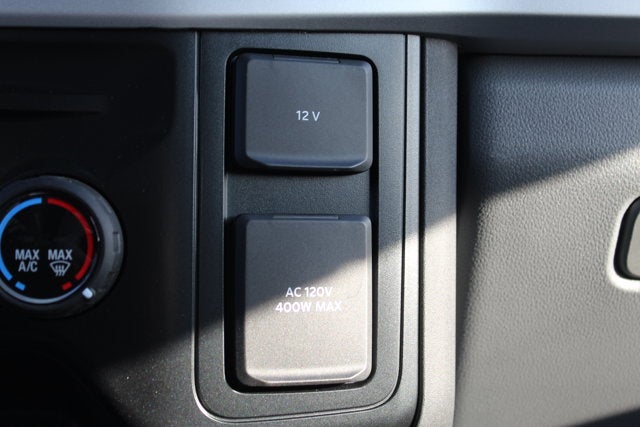

• 120V/400W OUTLET -inc: 1 in-dash mounted outlet
• Platform Running Boards
• Hydraulic 6-Ton Jack

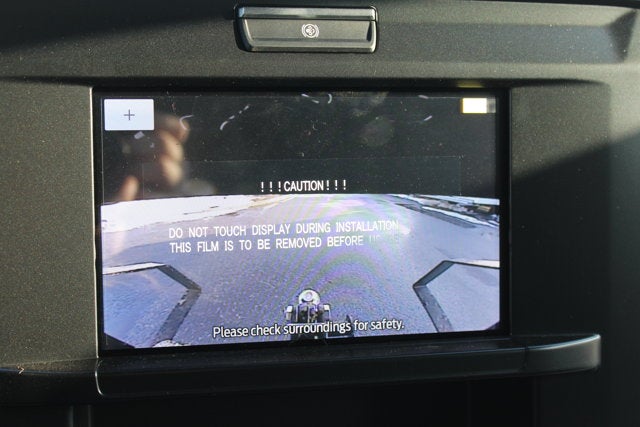

• REAR VIEW CAMERA & PREP KIT -inc: Pre-installed content includes cab wiring and frame wiring to the rear most cross member Upfitters kit includes camera w/mounting bracket 20' jumper wire and camera mounting/aiming instructions
• DUAL 68 AH/65 AGM BATTERY
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• Front License Plate Bracket
• TIRES: 245/70RX19.5 BSW TRACTION (6) -inc: Spare may not be the same as road tire
• Light Ice Blue Clearcoat Metallic

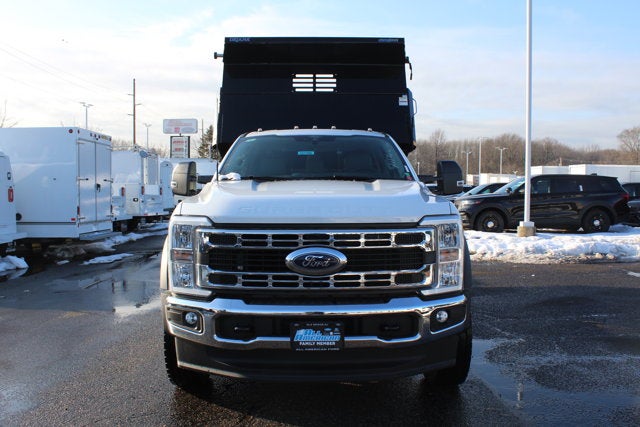

• XL CHROME PACKAGE -inc: Halogen Fog Lamps Bright Grille Remote Start Chrome Front Bumper
• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift selectable drive modes: normal tow/haul eco slippery roads and off-road and transmission power take-off provision (STD)
• TRANSFER CASE SKID PLATES
• 4.30 Ratio Limited Slip Axle
• ORDER CODE 680A
• Locking/Limited Slip Differential

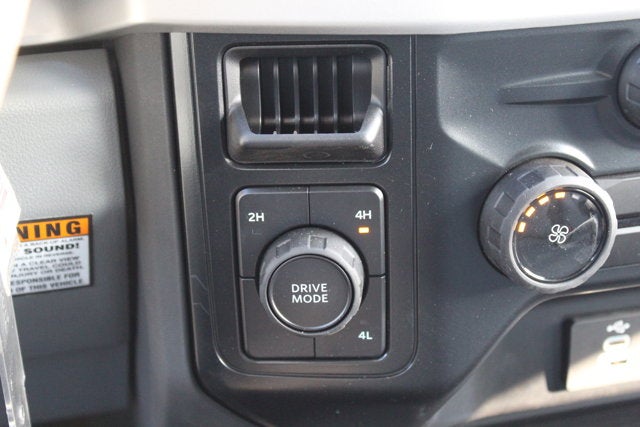

• Four Wheel Drive
• Power Steering

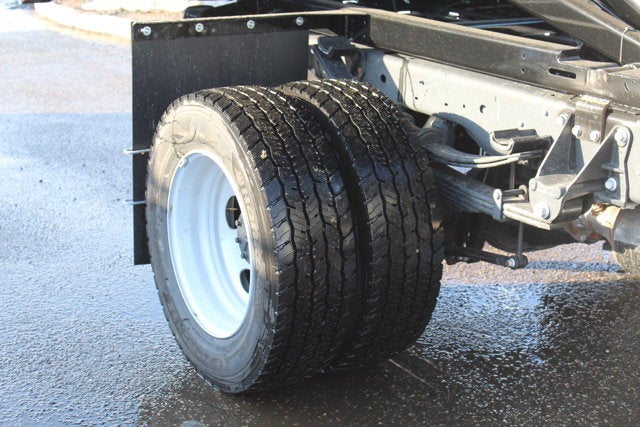

• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Adjustable Steering Wheel
• WiFi Hotspot
• Keyless Entry
• Cruise Control
• A/C
• Vinyl Seats

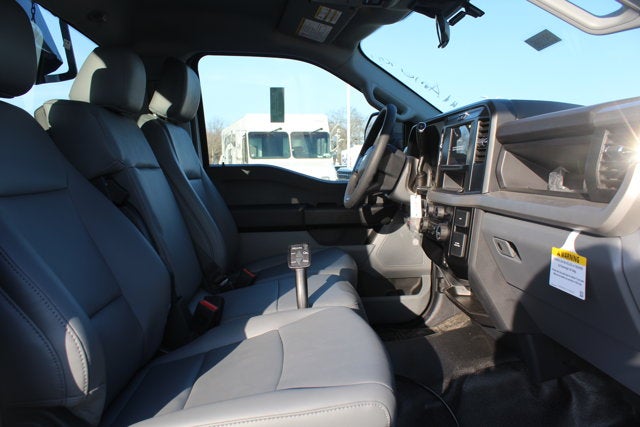

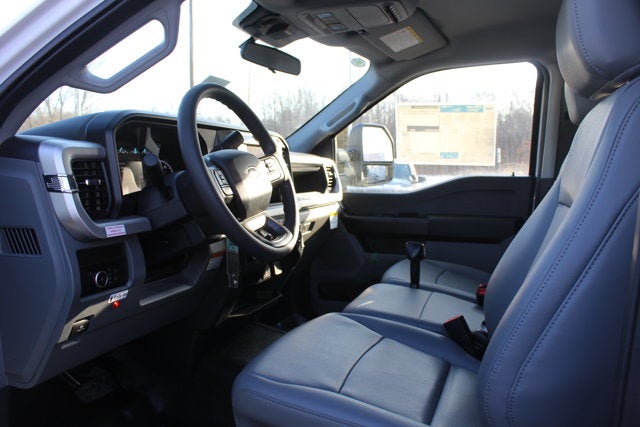

• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• Power Windows
• Security System
• Immobilizer
• Stability Control
• Front Side Air Bag
• Front Collision Mitigation
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 7128
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 15500
• Curb Weight - Front (lbs): 3976
• Curb Weight - Rear (lbs): 3152
• Gross Vehicle Weight Rating Cap (lbs): 22000
• Gross Combined Wt Rating (lbs): 31500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 23000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5750
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 15500
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.8
• Tires
• Front Tire Order Code: TD5
• Rear Tire Order Code: TD5
• Front Tire Size: LT245/70SR19.5
• Rear Tire Size: LT245/70SR19.5
• Front Tire Capacity (lbs): 9080
• Rear Tire Capacity (lbs): 17200
• Revolutions/Mile @ 45 mph - Front: 611
• Revolutions/Mile @ 45 mph - Rear: 611
• Wheels

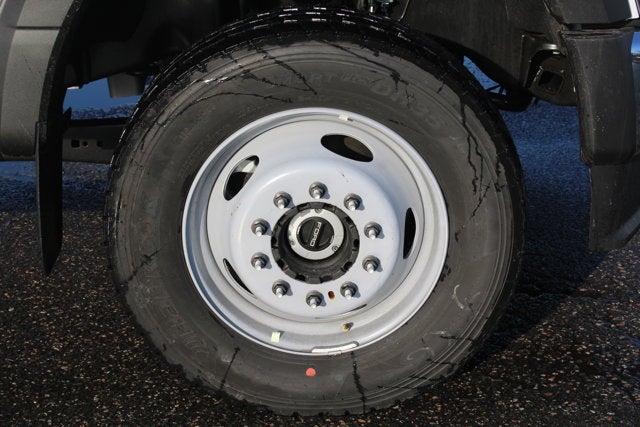

• Front Wheel Size (in): 19.5 X 6.75
• Rear Wheel Size (in): 19.5 X 6.75
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 42.5
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 230.7
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.4
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 9.1
• Ground Clearance, Rear (in): 9.1
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Summary

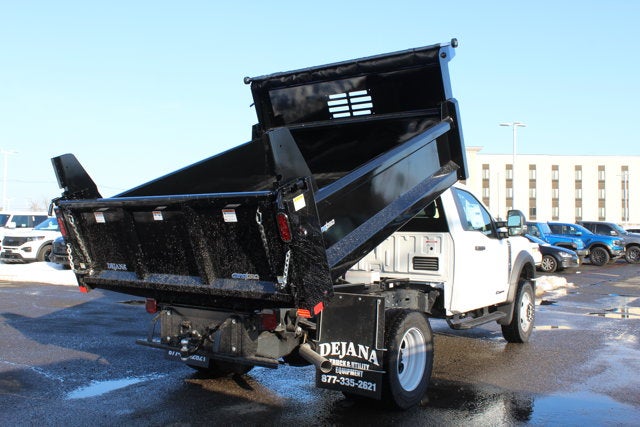

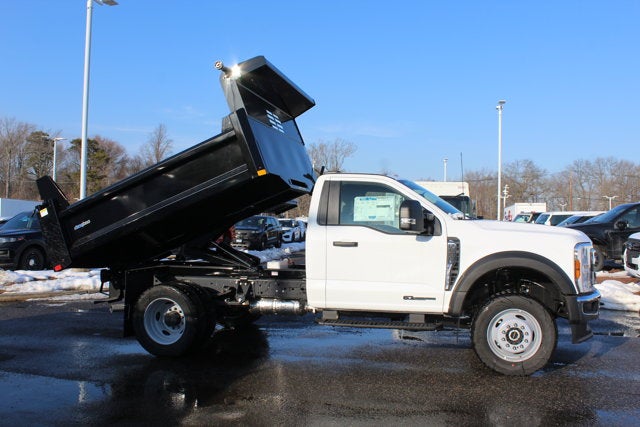

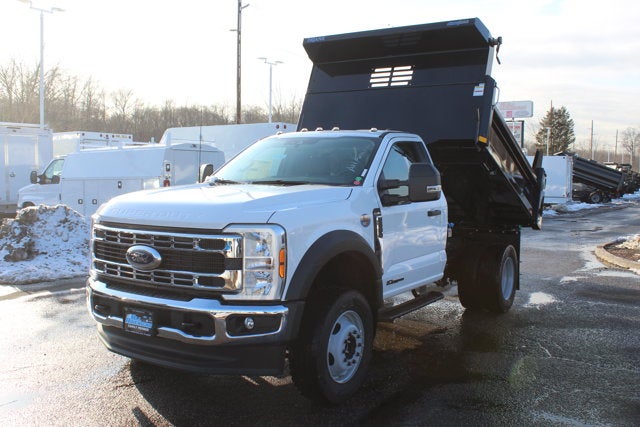

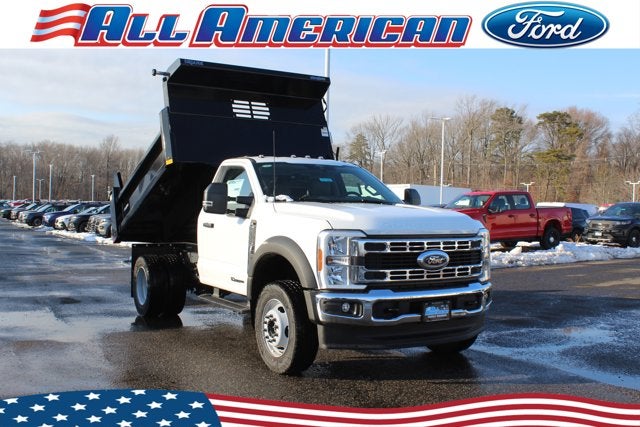

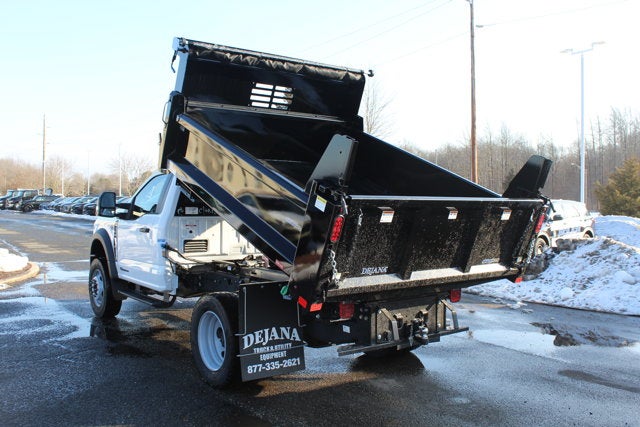

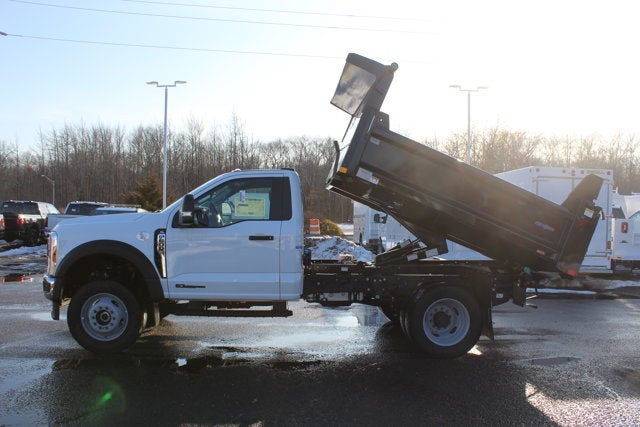

• Vehicle Name: Ford Super Duty F-600 DRW
• Body Style: SD Regular Cab
• Body Code: H
