• Air conditioning, dual-zone automatic climate control
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Audio system feature, 6-speaker system
• Cruise control, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Mirror, inside rearview, manual tilt
• Remote vehicle starter system
• Seat adjuster, passenger 4-way manual
• Seat trim, Cloth
• SiriusXM Radio
• Steering column, manual Tilt-Wheel and telescoping
• Steering wheel audio controls
• Steering wheel, heated
• Theft-deterrent system, unauthorized entry
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Window, power front, passenger express down
• Windows, power rear, express down

• Automatic Stop/Start
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Capless Fuel Fill
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Exhaust, single outlet
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Push Button Start
• Recovery hooks, front, frame-mounted, Black
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion

• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Seat Reminder
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist

ENGINE, 2.7L TURBO HIGH-OUTPUT

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (Includes (KW5) 220-amp alternator and (MQE) 8-speed automatic transmission. (STD)

• REAR AXLE 3.42 RATIO
• TRANSMISSION 8-SPEED AUTOMATIC (COLUMN SHIFTER) ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• NOT EQUIPPED WITH GMC MULTIPRO TAILGATE SEE DEALER FOR DETAILS (Certain vehicles will be forced to include (R6W) Not Equipped with GMC MultiPro Tailgate which removes the GMC MultiPro Tailgate and forces (QK1) Standard tailgate.)
• LPO BLACK TUBULAR ASSIST STEPS 4" ROUND (dealer-installed)
• GVWR 7000 LBS. (3175 KG) (STD)
• SEATS FRONT 40/20/40 SPLIT-BENCH with covered armrest storage and under-seat storage (lockable) (STD)
• LICENSE PLATE KIT FRONT
• ENGINE 2.7L TURBO HIGH-OUTPUT (310 hp [231 kW] @ 5600 rpm 430 lb-ft of torque [583 Nm] @ 3000 rpm) (Includes (KW5) 220-amp alternator and (MQE) 8-speed automatic transmission. (STD)
• NOT EQUIPPED WITH STEERING COLUMN LOCK SEE DEALER FOR DETAILS (Beginning with start of production vehicles will be forced to include (R7N) Not Equipped with Steering Column Lock which removes Steering Column Lock. See dealer for details.)
• TIRES 275/60R20SL ALL-TERRAIN BLACKWALL (Includes (QAQ) spare tire.)
• TAILGATE STANDARD
• AUDIO SYSTEM 13.4 " DIAGONAL PREMIUM GMC INFOTAINMENT SYSTEM WITH GOOGLE BUILT IN APPS SUCH AS NAVIGATION AND VOICE ASSISTANCE INCLUDES COLOR TOUCH-SCREEN MULTI-TOUCH DISPLAY AM/FM STEREO Bluetooth® streaming audio for music and most phones; featuring wireless Android Auto and Apple CarPlay capability for compatible phones (STD)
• JET BLACK CLOTH SEAT TRIM
• ELEVATION PREFERRED EQUIPMENT GROUP includes standard equipment
• ONYX BLACK
• BED LINER SPRAY-ON Pickup bedliner with GMC logo
• Tow Hitch
• Lane Departure Warning
• Lane Keeping Assist
• Front Collision Mitigation
• Front Collision Warning
• Automatic Highbeams
• Turbocharged
• High Output
• Keyless Start
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Daytime Running Lights
• LED Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• Navigation System
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Satellite Radio
• Requires Subscription
• Steering Wheel Audio Controls
• WiFi Hotspot
• Split Bench Seat
• Cloth Seats
• Power Driver Seat
• Driver Adjustable Lumbar
• Heated Front Seat(s)
• Floor Mats
• Adjustable Steering Wheel
• Heated Steering Wheel
• Power Windows
• Power Door Locks
• Keyless Entry
• Remote Engine Start
• Cruise Control
• Security System
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Back-Up Camera
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 22.4
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 62.9
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 8.08
• Ground Clearance, Rear (in): 8.08
• Height, Overall (in): 75.51
• Length, Overall (in): 231.92
• Wheelbase (in): 147.43
• Width, Max w/o mirrors (in): 81.24
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Interior Dimensions
• Front Head Room (in): 43.03
• Front Hip Room (in): 61.18
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 6
• Second Head Room (in): 40.12
• Second Hip Room (in): 60.24
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Mileage
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 20
• Fuel Economy Est-Combined (MPG): 19
• Steering
• Steering Type: Electric Rack & Pinion
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Crew Cab Pickup

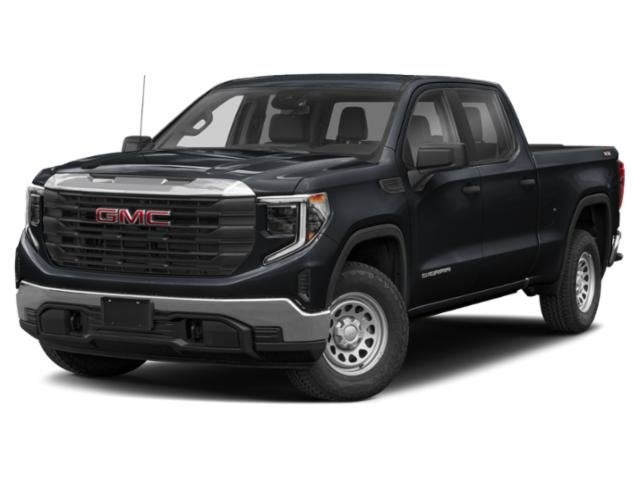

• Vehicle Name: GMC Sierra 1500
• Suspension
• Axle Capacity - Front (lbs): 3800
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 3850
• Stabilizer Bar Diameter - Front (in): 1.30
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Tires
• Front Tire Capacity (lbs): 3800
• Front Tire Order Code: QAE
• Front Tire Size: 275/60R20SL
• Rear Tire Capacity (lbs): 3800
• Rear Tire Order Code: QAE
• Rear Tire Size: 275/60R20SL
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: QAQ
• Spare Tire Size: 255/80R17SL
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2150
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8600
• Maximum Trailering Capacity (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 890
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8900
• Weight Information
• Curb Weight - Front (lbs): 2846
• Curb Weight - Rear (lbs): 1982
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Gross Combined Wt Rating (lbs): 14500
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 20 x 9
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 20 x 9
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 8
