• 4-Wheel Antilock Brake Sys
• 5G Modem
• Ford App
• Hill Start Assist
• Remote Keyless Entry
• Stabilizer Bar, Front/Rear
• Sync4 W/8" Screen

• 1Touch Up/Down Dr/Pass Win
• 4.2" Cluster Display
• Air Cond, Manual Front
• Black Vinyl Floor Covering
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls
• Upfitter Switches

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

XL F-550® DRW (660A)

Power Equipment Group

Ford Security Package (1-year included)

CNG/Propane Gaseous Engine Prep Package

Ford Connectivity Package (1-year included)

• REAR VIEW CAMERA & PREP KIT -inc: Pre-installed content includes cab wiring and frame wiring to the rear most cross member Upfitters kit includes camera w/mounting bracket 20' jumper wire and camera mounting/aiming instructions
• 410 AMP DUAL ALTERNATORS -inc: 250 Amp + 160 Amp
• EXTERIOR BACKUP ALARM (PRE-INSTALLED)
• Light Ice Blue Clearcoat Metallic
• SNOW PLOW PREP PACKAGE -inc: pre-selected springs (see order guide supplemental reference for springs/FGAWR of specific vehicle configurations) Note 1: Restrictions apply; see supplemental reference or body builders layout book for details Note 2: Also allows for the attachment of a winch Adding (67B) 410 amp dual alternators is highly recommended for max power output 350 Amp Dual Alternators 190 Amp + 160 Amp
• Oxford White
• FRONT WHEEL WELL LINER (PRE-INSTALLED)
• TRANSMISSION: TORQSHIFT 10-SPEED AUTOMATIC -inc: SelectShift selectable drive modes: normal tow/haul eco slippery roads and off-road and transmission power take-off provision (STD)
• ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20 -inc: Operator Commanded Regeneration (OCR) Diesel Exhaust Fluid (DEF) tank and manual push-button engine-exhaust braking 4.10 Axle Ratio 250 Amp Alternator Dual 68 AH/65 AGM Battery
• Platform Running Boards
• Rapid Heat Supplemental Heater
• 4.30 Ratio Limited Slip Axle
• HIGH CAPACITY TRAILER TOW PACKAGE -inc: trailer brake wiring kit and upgraded rear-axle Increases GCW from 34 500 lbs to 43 000 lbs Note: Salesperson's Portfolio or Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability See Supplemental Reference for vehicle height consideration
• AUTOMATED EMERGENCY BRAKING (AEB) REMOVAL -inc: Removes Pre-Collision Assist w/Automated Emergency Barking (AEB) and forward collision warning auto high beams post impact braking and audible lane departure warning
• Trailer Brake Controller
• DUAL 68 AH/65 AGM BATTERY
• Front License Plate Bracket
• GVWR: 19 550 LB PAYLOAD PLUS UPGRADE PACKAGE -inc: low deflection/high capacity rear springs upgraded frame and upgraded rear-axle Increases max RGAWR to 14 706 lbs
• Center High-Mounted Stop Lamp
• TIRES: 225/70RX19.5G BSW TRACTION (TGK) -inc: 4 traction tires on the rear and 2 traction tires on the front Not recommended for over the road applications; could incur irregular front tire wear and/or NVH
• Equipment Group 600A
• Four Wheel Drive
• Power Steering
• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Keyless Entry
• Cruise Control
• A/C
• Vinyl Seats
• Split Bench Seat
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• WiFi Hotspot
• Security System
• Immobilizer
• Traction Control
• Front Side Air Bag
• Front Collision Mitigation
• Tire Pressure Monitor
• Front Head Air Bag
• Rear Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 190
• Weight Information
• Base Curb Weight (lbs): 7398
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4209
• Curb Weight - Rear (lbs): 3189
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Gross Combined Wt Rating (lbs): 30000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5300
• Maximum Trailering Capacity (lbs): 18500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Front: 4.88
• Axle Ratio (:1) - Rear: 4.88
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.4
• Rear Brake Rotor Diam x Thickness (in): 15.8
• Tires
• Front Tire Order Code: TGJ
• Rear Tire Order Code: TGJ
• Front Tire Size: LT225/70SR19.5
• Rear Tire Size: LT225/70SR19.5
• Front Tire Capacity (lbs): 7500
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 647
• Revolutions/Mile @ 45 mph - Rear: 647
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 51.1
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 179
• Length, Overall (in): 265.2
• Width, Max w/o mirrors (in): 80
• Height, Overall (in): 82.8
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): 47.2
• Cab to Axle (in): 60
• Cab to End of Frame (in): 107.2
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 8.6
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

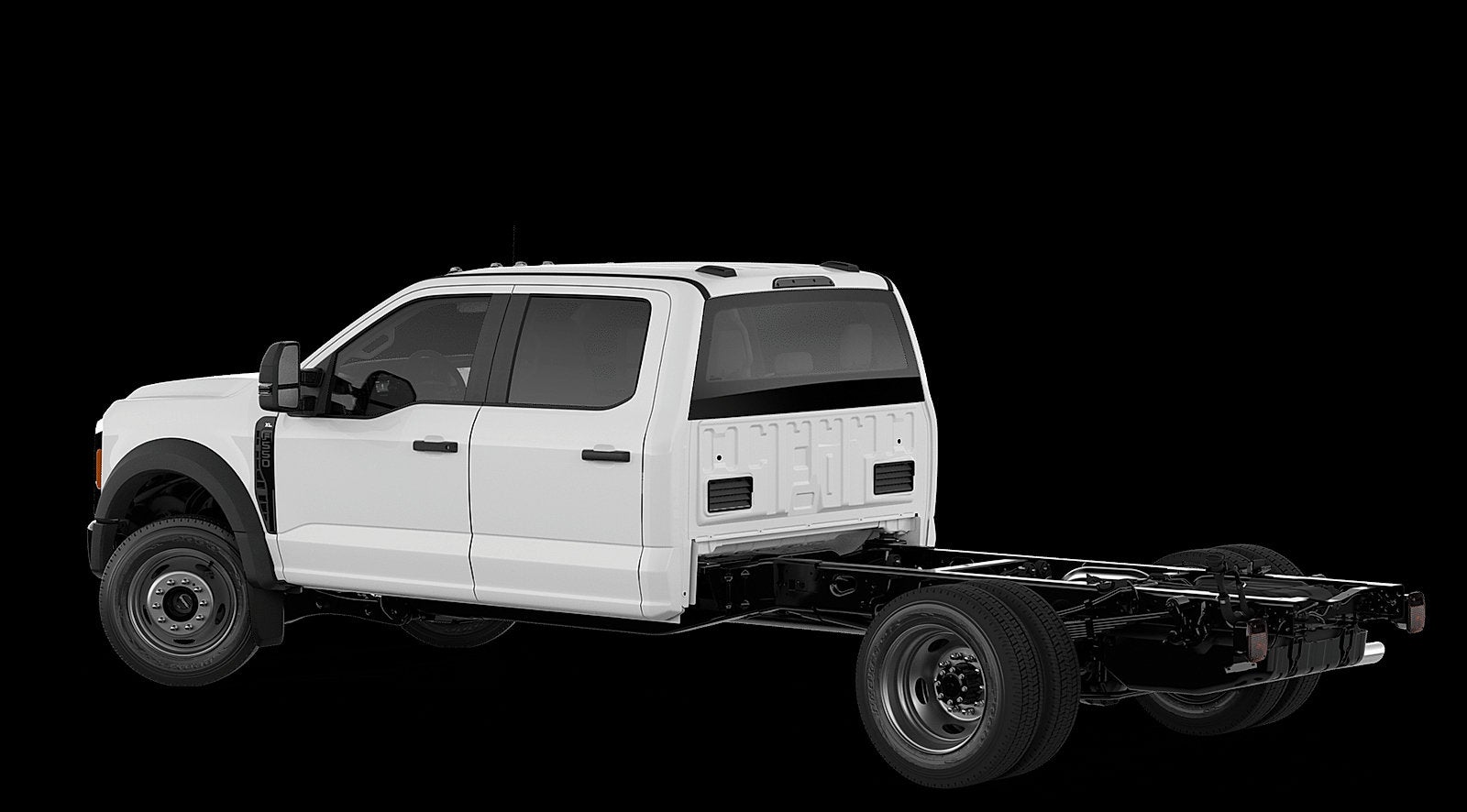

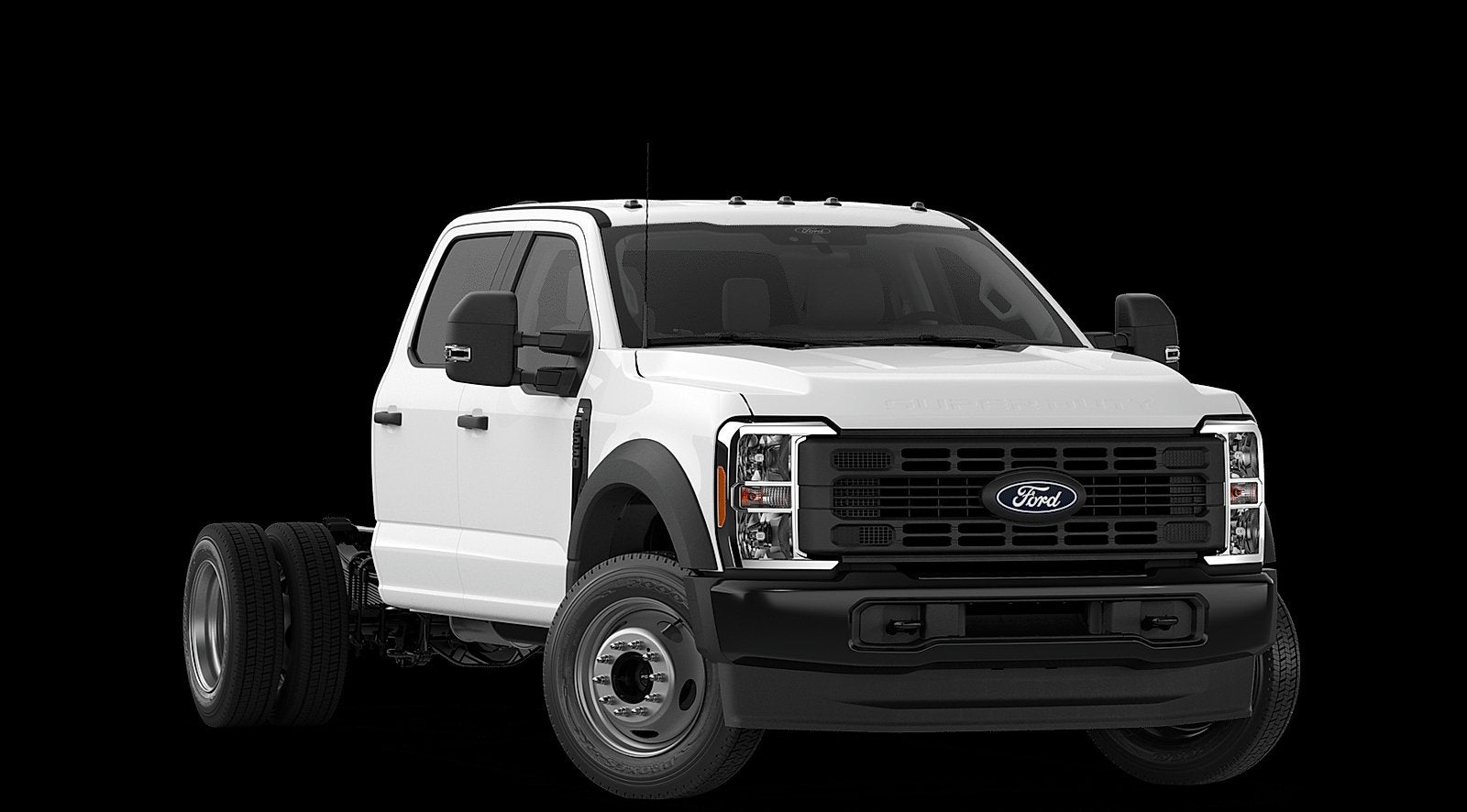

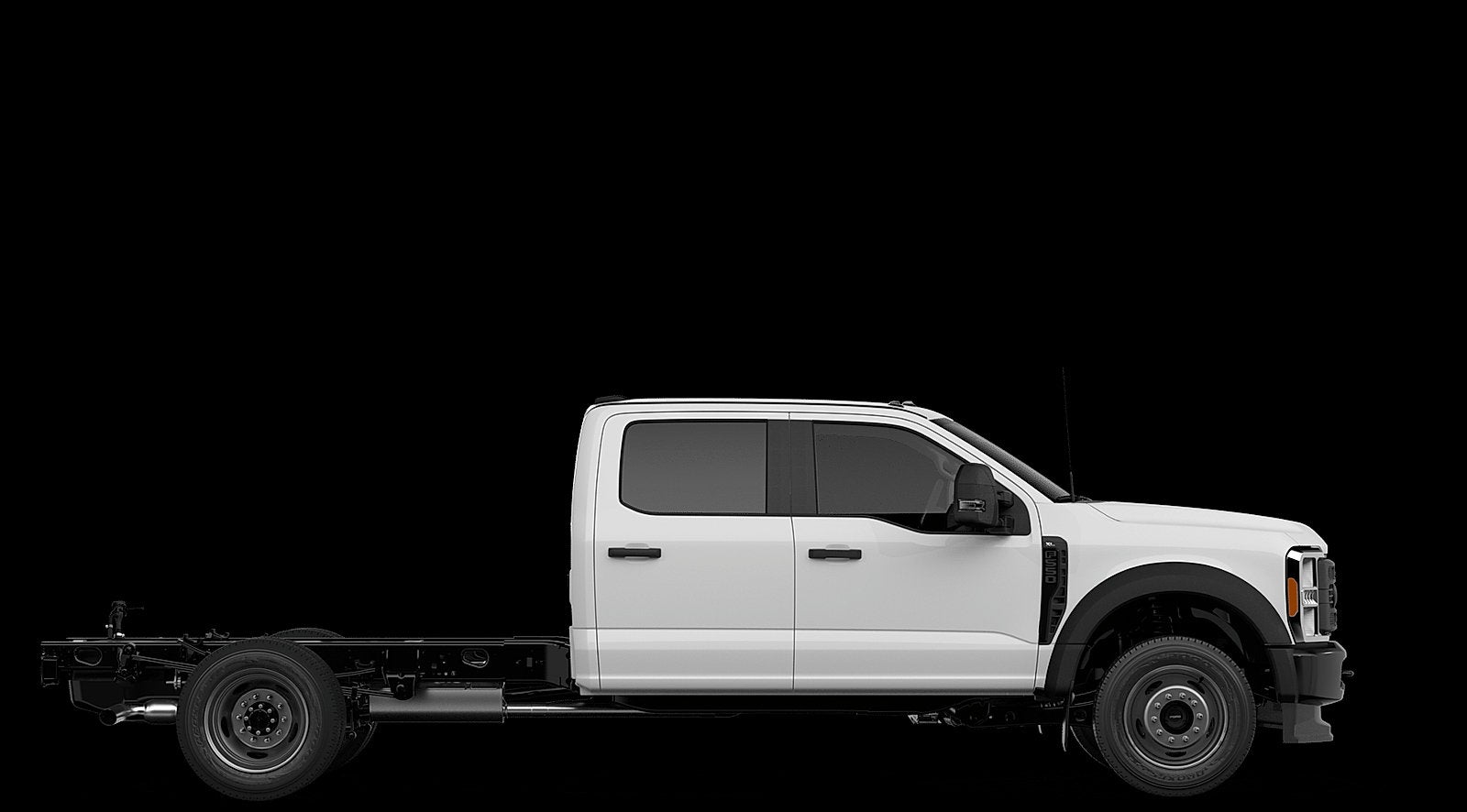

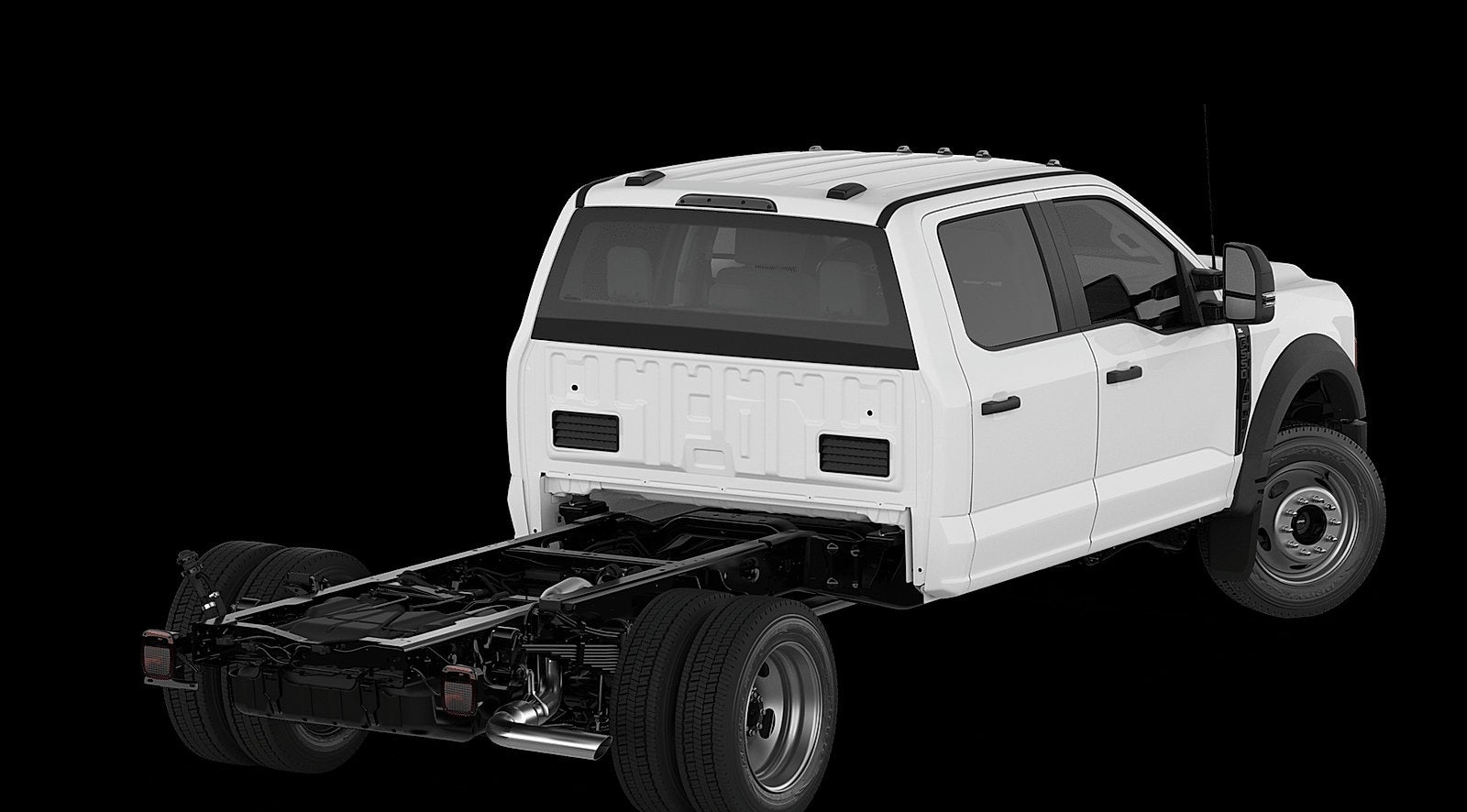

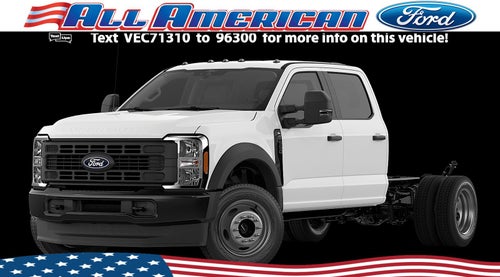

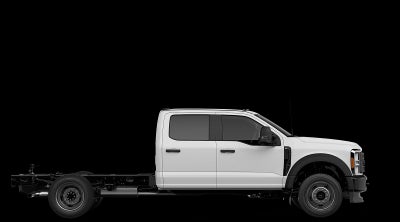

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: SD Crew Cab
• Body Code: H
